Pipeline Pattern

Context上下文

Request handlers often start additional goroutines to access backends such as databases and RPC services.

The set of goroutines working on a request typically needs access to request-specific values such as the identity of the end user, authorization tokens, and the request’s deadline.

When a request is canceled or times out, all the goroutines working on that request should exit quickly so the system can reclaim any resources they are using.

跨goroutine控制，并发、超时控制、路由ID、鉴权校验等

Context的详细介绍可以参考：https://www.51cto.com/article/642806.html和https://go.dev/blog/context

流水线并发模式

Definition

流水线并发模式参考： https://go.dev/blog/pipelines

Fan-out, fan-in

  • Multiple functions can read from the same channel until that channel is closed; this is called fan-out. This provides a way to distribute work amongst a group of workers to parallelize CPU use and I/O.
  • A function can read from multiple inputs and proceed until all are closed by multiplexing the input channels onto a single channel that’s closed when all the inputs are closed. This is called fan-in.

Guidelines

The guidelines for pipeline construction:
1.stages close their outbound channels when all the send operations are done.
2.stages keep receiving values from inbound channels until those channels are closed or the senders are unblocked.

  • In real pipelines, stages don’t always receive all the inbound values. Sometimes this is by design: the receiver may only need a subset of values to make progress. More often, a stage exits early because an inbound value represents an error in an earlier stage. In either case the receiver should not have to wait for the remaining values to arrive, and we want earlier stages to stop producing values that later stages don’t need.

  • A select statement that proceeds either when the send on out happens or when they receive a value from done. The value type of done is the empty struct because the value doesn’t matter: it is the receive event that indicates the send on out should be abandoned. The output goroutines continue looping on their inbound channel, c, so the upstream stages are not blocked.

1.A way to tell an unknown and unbounded number of goroutines to stop sending their values downstream is by closing a channel becase a receive operation on a closed cahnnel can always proceed immediately, yielding the element type’s zero value.
2.This means that can unblock all the senders simply by closing the done channel. This close is effectively a broadcast signal to the senders.
3. 多个协程监听done需要close操作立即广播停止，不需要预先知道协程数！

Goroutines consume memory and runtime resources, and heap references in goroutine stacks keep data from being garbage collected. Goroutines are not garbage collected; they must exit on their own.

  1. A receive operation on a closed channel can always proceed immediately, yielding the element type’s zero value
  2. 通道用完后，不是一定要close操作，只有在通知接收方goroutine所有数据都发送完毕时才需要显示关闭
  3. 垃圾回收器根据通道是否可以被访问来确定通道是否被回收，跟是否关闭无关！

Kernel Example Code

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
package main

import (
	"fmt"
	"sync"
	"testing"
)

func gen(done <-chan struct{}, nums ...int) <-chan int {
	out := make(chan int)
	go func() {
		defer close(out)
		for _, n := range nums {
			select {
			case out <- n:
			case <-done:
				return
			}
		}
	}()
	return out
}

func sq(done <-chan struct{}, in <-chan int) <-chan int {
	out := make(chan int)
	go func() {
		defer close(out)
		for n := range in {
			select {
			case out <- n * n:
			case <-done:
				return
			}
		}
	}()
	return out
}

func merge(done <-chan struct{}, cs ...<-chan int) <-chan int {
	var wg sync.WaitGroup
	out := make(chan int)

	// Start an output goroutine for each input channel in cs.  output
	// copies values from c to out until c is closed or it receives a value
	// from done, then output calls wg.Done.
	output := func(c <-chan int) {
		defer wg.Done()
		for n := range c {
			select {
			case out <- n:
			case <-done: //
				return
			}
		}
	}
	wg.Add(len(cs))
	for _, c := range cs {
		go output(c)
	}

	// Start a goroutine to close out once all the output goroutines are
	// done.  This must start after the wg.Add call.
	go func() {
		wg.Wait()
		close(out)
	}()
	return out
}

func TestMain(t *testing.T) {
	// Set up a done channel that's shared by the whole pipeline,
	// and close that channel when this pipeline exits, as a signal
	// for all the goroutines we started to exit.
	done := make(chan struct{})
	defer close(done)

	in := gen(done, 2, 3)

	// Distribute the sq work across two goroutines that both read from in.
	c1 := sq(done, in)
	c2 := sq(done, in)

	// Consume the first value from output.
	out := merge(done, c1, c2)
	fmt.Println(<-out) // 4 or 9

	// done will be closed by the deferred call.
}

MD5Sum Pipeline

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
package main

import (
	"crypto/md5"
	"errors"
	"fmt"
	"io/ioutil"
	"os"
	"path/filepath"
	"sort"
	"sync"
	"testing"
)

type result struct {
	path string
	sum  [md5.Size]byte
	err  error
}

// walkFiles Stage1
func walkFiles(done <-chan struct{}, root string) (<-chan string, <-chan error) {
	paths := make(chan string)
	errc := make(chan error, 1)
	go func() {
		// Close the paths channel after Walk returns.
		defer close(paths)
		// No select needed for this send, since errc is buffered.
		errc <- filepath.Walk(root, func(path string, info os.FileInfo, err error) error {
			if err != nil {
				return err
			}

			if !info.Mode().IsRegular() {
				return nil
			}

			select {
			case paths <- path:
			case <-done:
				return errors.New("walk canceled")
			}
			return nil
		})
	}()
	return paths, errc
}

// digester Stage2
func digester(done <-chan struct{}, paths <-chan string, c chan<- result) {
	for path := range paths {
		data, err := ioutil.ReadFile(path)
		select {
		case c <- result{path, md5.Sum(data), err}:
		case <-done:
			return
		}
	}
}

func MD5All(root string) (map[string][md5.Size]byte, error) {
	// MD5All closes the done channel when it returns; it may do so before
	// receiving all the values from c and errc.
	done := make(chan struct{})
	defer close(done)

	paths, errc := walkFiles(done, root)

	c := make(chan result)
	var wg sync.WaitGroup
	const numDigesters = 20
	wg.Add(numDigesters)
	for i := 0; i < numDigesters; i++ {
		go func() {
			digester(done, paths, c)
			wg.Done()
		}()
	}

	go func() {
		wg.Wait()
		close(c)
	}()

	m := make(map[string][md5.Size]byte)
	for r := range c {
		if r.err != nil {
			return nil, r.err
		}
		m[r.path] = r.sum
	}

	// Check whether whe Wal failed.
	if err := <-errc; err != nil {
		return nil, err
	}
	return m, nil
}

/*
paths -> result
*/
func TestMd5Pipeline(t *testing.T) {
	// Calculate the MD5 sum of all files under the specified directory,
	// then print the results sorted by path name.
	m, err := MD5All("./")
	if err != nil {
		fmt.Println(err)
		return
	}
	var paths []string
	for path := range m {
		paths = append(paths, path)
	}
	sort.Strings(paths)
	for _, path := range paths {
		fmt.Printf("%x  %s\n", m[path], path)
	}
}

批跑框架

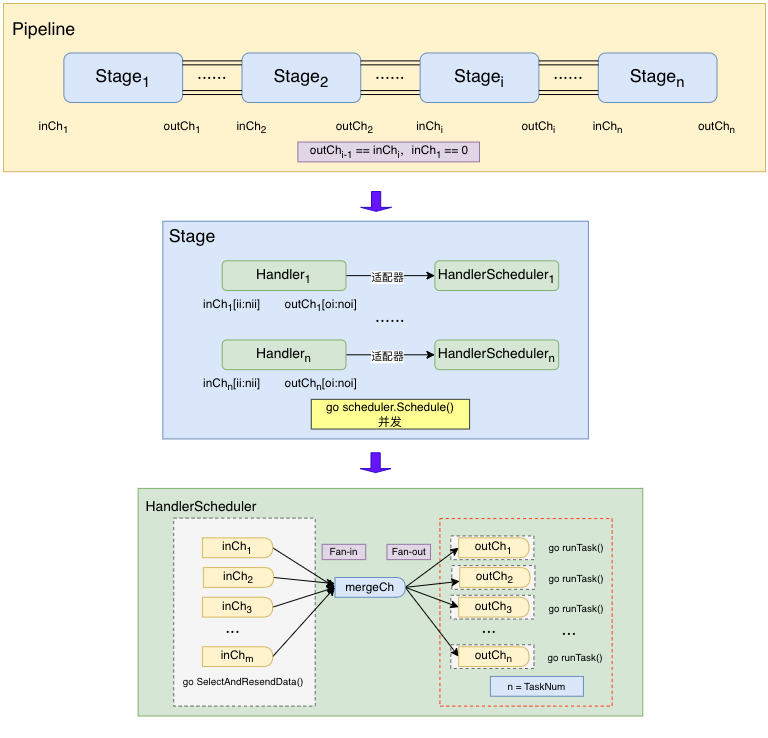

底层数据流图

pipeline-pattern

核心处理链路

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Pipeline.Process()

Stage.Run()

HandlerScheduler.Schedule()

startTasks

go selectAndResendData: 从inCh (上游stage的outCh) 中读取数据到mergeCh

go runTask：

从mergeCh中读取数据

限流判断

调用handler.handle处理数据

将处理完的数据写入outCh，由下游stage处理

整体通过chan串起全流程，监听ctx.Done广播所有协程停止，具体逻辑看代码。

源码

C++实现版：https://github.com/TechCodingLearning/pipeline-pattern
